Low Water Head Kaplan Turbine Generator Mini Hydropower Station

  • 1
  • 2
  • 3

Brand Name : DSSD

Model Number : Kaplan water turbine generator

Certification : ISO TUV CE

Place of Origin : CHINA

MOQ : 1set

Price : 20000~30000USD/set

Supply Ability : 20sets

Packaging Details : wooden box /plastic film

Type : water turbine generator

Frequency : 50HZ/60HZ

Water Head : 10m to 70m

Color : Green, Blue or optional

Warranty : 3month~1year

Generator voltage : 400V, 800V, 6300V, 10500V

Capacity : 300kw to 20mw

Contact Now

Low Water Head Kaplan Turbine Generator Mini Hydropower Station

Kaplan turbine

At many power plant sites, where large quantities of water were avaliable at low heads, the dimensions of francis turbine started becoming

too large and uneconomical, and another turbine named propeller turbine was developed.

This turbine has major parts like the scroll case, stay vanes, guide vanes and the draft tube similar to the francis turbine. However, the runner is different.

Low Water Head Kaplan Turbine Generator Mini Hydropower Station Low Water Head Kaplan Turbine Generator Mini Hydropower Station

Specification of kaplan

Water Head 10-70m
Runner Diameters 0.45-5m
Power Range 300KW to 20MW
Frequency 50HZ/60HZ
Generator Voltage 400V,800V,6300V,10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZG0Cr13NI4Mo
Excitation Brushless or Static excitation system
Generator Insulation F/F
Manufacturer Deyang Dongsen Hydropower Equipment Co.,Ltd

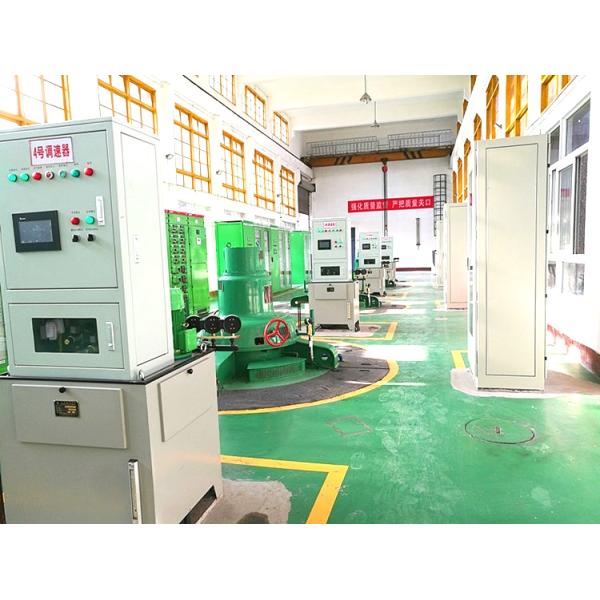

Kaplan turbine is used to hydropower plant

Xinsheng HPP

5x500kw

Head: 7.5m, Rated voltage: 400v

Turbine Type: ZD***-LH-120 Motor model: SF500-20/1730

Low Water Head Kaplan Turbine Generator Mini Hydropower Station Low Water Head Kaplan Turbine Generator Mini Hydropower Station
